Views: 0 Author: Site Editor Publish Time: 2026-06-29 Origin: Site
Airport facades should feel light, open, and calm. Yet every terminal hides frames, joints, slab edges, ducts, and service zones. This is where aluminum cladding becomes useful. In this article, you will learn how it supports invisible curtain wall design, improves facade performance, and helps airport terminals look cleaner for years.
● Aluminum cladding helps airport curtain walls look cleaner by hiding frames, fixings, spandrel zones, roof edges, and service areas.
● It supports the “invisible” design effect because it can align with glass modules, match facade colors, and reduce visual breaks.
● Airport terminals need lightweight, corrosion-resistant, low-maintenance cladding because their facades are large, exposed, and hard to access.
● Perforated aluminum panels can hide mechanical zones while allowing ventilation, making them useful near equipment rooms and service walls.
● The best result comes from early coordination between the curtain wall team, cladding fabricator, installer, and facade consultant.
● Finish choice matters. Coated, brushed, embossed, or perforated surfaces should match weather exposure, glare control, and design intent.
● A good specification should cover panel size, fixing method, joint layout, drainage, expansion, access, and local safety rules.
Airport terminals often use large glass curtain walls to create daylight, views, and a clear sense of arrival. Passengers should see a bright, open building, not a busy grid of frames and panels. A clean facade also helps the terminal look modern from roads, drop-off lanes, aircraft aprons, and nearby hotels.
Invisible curtain wall design does not mean the structure disappears. It means technical parts are controlled. Frames, service panels, and opaque zones are handled in a way that feels planned, not added later.
A terminal facade must manage wind, rain, heat, glare, movement, cleaning, and daily use. It cannot rely on glass alone. Behind the simple look, the facade still needs spandrel covers, edge trims, drainage paths, access panels, and protected fixing points.
Aluminum cladding helps cover these areas while keeping the visual language consistent. It gives designers a way to hide necessary layers without making the building feel heavy.
Airport terminals are much wider than most commercial buildings. One small mismatch can repeat across hundreds of meters. If the cladding joints do not match the glass grid, the whole elevation can look broken.
This is why module planning matters. Panel widths, joint spacing, folded edges, and corner details should follow the curtain wall rhythm. The goal is a facade where glass and metal read as one system.
Note：For airport terminals, facade alignment should be checked across full elevations, not only one sample bay.
Aluminum cladding can cover visible fixing points, brackets, and floor-slab lines. These areas often interrupt glass facades. When cladding panels are detailed well, they create a smooth transition between transparent and opaque areas.
This is especially useful at terminal floors, bridge connections, mezzanine levels, and roof edges. The cladding does not fight the glass. It supports the glass by hiding what passengers should not notice.
Every curtain wall has areas where transparency is not possible. Behind the facade, there may be floors, insulation, equipment, fire barriers, or back-of-house spaces. These areas need a finished exterior layer.
Aluminum cladding works well for these spandrel zones. It can match the glass tone, contrast as a design feature, or carry a subtle pattern. This helps the facade stay continuous even where it is not fully transparent.
Many modern terminals use long roof lines, curved entrances, large canopies, and angled glass walls. Rigid facade materials can make these areas difficult to finish. Aluminum panels offer better forming options, especially for folded edges, curved surfaces, and custom panel layouts.
This flexibility matters near drop-off entrances and atrium walls. These are the areas passengers remember first. Clean cladding details help the building feel intentional from the first view.
Large metal areas can look heavy if the surface is flat and dark. Aluminum cladding can reduce this effect through perforation, fine joints, matte finishes, or light-reflective coatings. The facade can keep a sharp technical look without feeling closed.

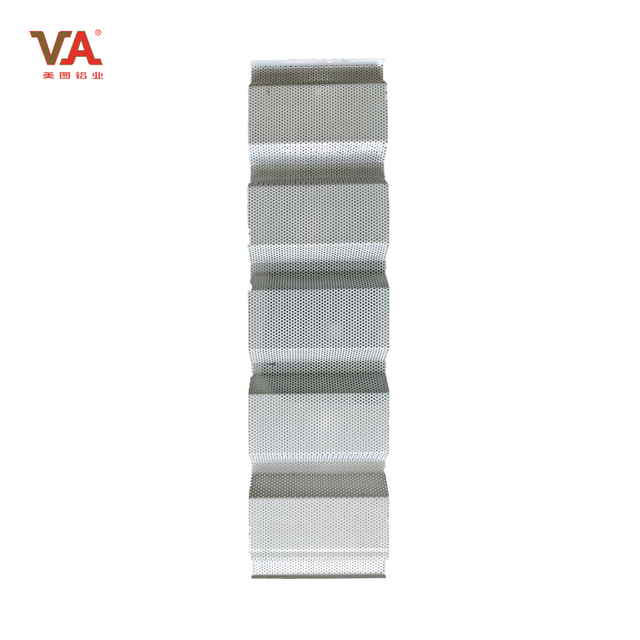

Perforated aluminum panels are especially useful when the design needs both coverage and airflow. They can screen equipment while keeping the surface lighter.
Tip：Use mockups to compare panel color under daylight, sunset light, and night lighting before final approval.
The entrance is the most visible part of the terminal. It often combines glazing, canopy soffits, signs, doors, and security lines. Aluminum cladding can frame this area without blocking views.
It can also hide structural beams above entrances. When the panel joints follow the glass grid, the entrance feels clean and easy to read.
Departure halls often use tall curtain walls to bring in daylight. These facades still need opaque bands at floor edges and service areas. Aluminum cladding can hide those zones and keep the glass elevation neat.
It also supports long horizontal lines. This helps the terminal look wider, calmer, and more organized.
Airport roofs often project beyond the glass wall. These edges need a durable finish because they face wind, sun, rain, and cleaning equipment. Aluminum cladding is useful for parapets, fascia panels, and soffit transitions.
Good roof-edge cladding also protects the visual top line of the terminal. A poor edge detail can make even a high-quality curtain wall look unfinished.
Airport terminals need electrical rooms, plant rooms, baggage areas, and ventilation zones. These spaces cannot always use clear glass. Perforated or louvered aluminum cladding can hide equipment while allowing airflow.
Facade Area | Main Design Problem | Aluminum Cladding Role |
Entrance facade | Mixed glass, doors, signs, and canopy lines | Creates a cleaner frame |
Spandrel zone | Hidden floors and service layers | Covers opaque areas |
Roof edge | Exposed parapets and soffits | Protects and finishes edges |
Mechanical zone | Equipment needs airflow | Screens while allowing ventilation |
Curved corner | Complex panel geometry | Supports custom forming |
Airport terminals often stand in open areas. Their facades may face strong wind and pressure changes. Aluminum cladding must be specified with the right panel thickness, rib design, frame support, and fixing method.
The fixing system matters as much as the panel itself. Concealed clips, brackets, and subframes should be checked by project engineers. Large panels also need careful deflection control, especially near corners and roof zones.
A clean facade still needs practical water control. Rain should drain away, not collect behind panels. Joints, flashings, weep paths, and pressure-equalized cavities should be planned before installation.
Aluminum cladding can perform well in exposed settings when the system includes suitable coatings and proper drainage. Poor drainage can stain panels, damage seals, or affect nearby curtain wall parts.
Aluminum expands and contracts as temperature changes. Airport facades can see strong heat, cold, and daily sun movement. Long elevations need movement joints, flexible connections, and correct gaps.
If movement is ignored, panels may warp, buckle, or stress the curtain wall interface. This risk grows on dark-colored panels and long unbroken runs.
Airport terminals are public buildings. Fire safety cannot be treated as a minor detail. Material selection, backing layers, insulation, cavity barriers, and local facade codes all need review.
The correct solution depends on project location and building rules. The cladding should be selected as part of a tested and compliant facade assembly, not as an isolated panel.
Note：Always confirm facade fire requirements with local codes and project consultants before final material approval.
Exterior airport facades need finishes that can resist UV, pollution, rain, and regular cleaning. Coated aluminum surfaces are often used for this reason. They help keep the facade color stable and reduce maintenance pressure.
For invisible curtain wall design, color consistency is critical. Even small color differences can stand out across long terminal elevations. Batch control and sample approval should be part of procurement.
Airport glass and metal facades can create glare. This affects passengers, drivers, and nearby buildings. Matte or lightly textured aluminum cladding can reduce harsh reflections while keeping the facade modern.
This choice is useful near drop-off lanes, road-facing facades, and bright departure halls. The surface should support comfort as well as appearance.
Perforated aluminum cladding adds function and depth. It can provide ventilation for service areas, screen equipment, and reduce the flat look of large opaque surfaces. Pattern size and open area should match airflow needs.
For airport projects, the perforation pattern should also suit cleaning and durability. Very small holes may trap dirt in polluted environments. Large openings may expose equipment too clearly.
Large flat metal panels may look plain on wide airport facades. Textured or embossed surfaces can add visual interest without using loud colors. They also help break reflections across long exterior walls.
This works best when used in controlled zones. Too many textures can weaken the invisible curtain wall effect.
Aluminum cladding should not be treated as a late cover-up. It needs to connect with the glass grid, brackets, drainage paths, insulation, and maintenance access. Late changes can cause visible seams and site delays.
Early planning helps the facade team hide details cleanly. It also reduces conflict between glass installation, metal fabrication, and structural support.
Airport facades often use long straight lines. Small tolerance problems can become easy to see. Panel cutting, folding, drilling, and pre-assembly should follow approved drawings and site measurements.
Installation teams also need clear setting-out points. If the first panels are misaligned, the error may repeat across the elevation.
Invisible design should not block maintenance. Airports need access to lights, sensors, drains, and service equipment. Aluminum cladding can include removable panels, concealed fasteners, or planned access zones.
The best access detail is easy to use but hard to notice. This keeps the facade clean while supporting long-term operation.
Tip：Mark all hidden access panels in the maintenance manual, not only in construction drawings.
Different areas need different cladding solutions. A roof soffit does not face the same demands as a spandrel panel. A mechanical screen does not need the same finish as a main entrance wall.
Start by mapping the facade zones. Then choose solid, perforated, formed, coated, or decorative panels based on function and visibility.
Panel thickness alone does not define performance. A thinner panel may perform well if it has ribs, folds, or correct subframe support. A thicker panel can still fail if the fixing method is weak.
The specification should cover panel structure, backing frame, fasteners, joint design, and movement allowance. These parts work together.
Airport terminals are viewed in many lighting conditions. Morning sun, indoor lighting, night lighting, and reflections from glass can all change panel color. A sample viewed indoors may not show the final result.
Use physical samples and facade mockups where possible. Compare them beside glass, sealant, and frame finishes.
A practical checklist can reduce mistakes during design and procurement:
● Facade zone and design purpose
● Panel size and joint layout
● Surface finish and color range
● Solid or perforated panel type
● Fixing method and subframe design
● Drainage and water control
● Thermal movement allowance
● Fire and local code requirements
● Maintenance and replacement access
● Packaging and site handling needs
V Global Manufacturing provides aluminum cladding, aluminum sheets, perforated panels, and curtain wall solutions for modern facade projects. Its products support custom dimensions, durable finishes, corrosion resistance, and flexible design needs. For airport terminals, these advantages help create cleaner curtain walls, hidden service zones, and stronger long-term facade value.
A: Aluminum cladding hides frames, joints, slabs, and service zones.
A: Aluminum cladding is light, durable, flexible, and low maintenance.
A: Yes. It screens equipment while allowing needed airflow.
A: It can reduce long-term maintenance and structural load.
A: Match panel joints with curtain wall modules early.
